THE MODULES.
Tool-less. Modular. Plug and play.
Lighting
Emergency Lighting
4-Way
Long Runner
Medium Runner
Short Runner
Starter
Slinky
Power and Post
Accessories.
Starter with Switch
Converter
Reconverter
Power
Lighting Globe
Test Leads
End Cap
T Piece
Right Turn
Left Turn
Techinical
Data.
Swipe left on table for all data >
| Modules | Length | Width | Height | Weight | IP rating | Point load | Description |
|---|---|---|---|---|---|---|---|
| Starter Without switch (PTFC00) With switch (PTFCS0) |
200mm (not inc. leads) | 258mm | 29mm | 1.9kg / 2.2kg | IP65/IP2X | 100kg | Connects to a transformer and is the first module in a run of Powertrack. |
| Long Runner (PTE120) | 1200mm | 258mm | 29mm | 5.7kg | IP65/IP2X | 5000kg | Longest connecting module. |
| Medium Runner (PTE060) | 600mm | 258mm | 29mm | 3.4kg | IP65/IP2X | 5000kg | Mid length connecting module. |
| Short Runner (PTE020) | 200mm | 258mm | 29mm | 1kg | IP65/IP2X | 5000kg | Shortest connecting module. |
| Lighting (PTLS00WC) | 1200mm | 258mm | 29mm | 5.9kg | IP65/IP2X | 300kg | Provides both safety and task lighting 30,000 hours LED life span. |

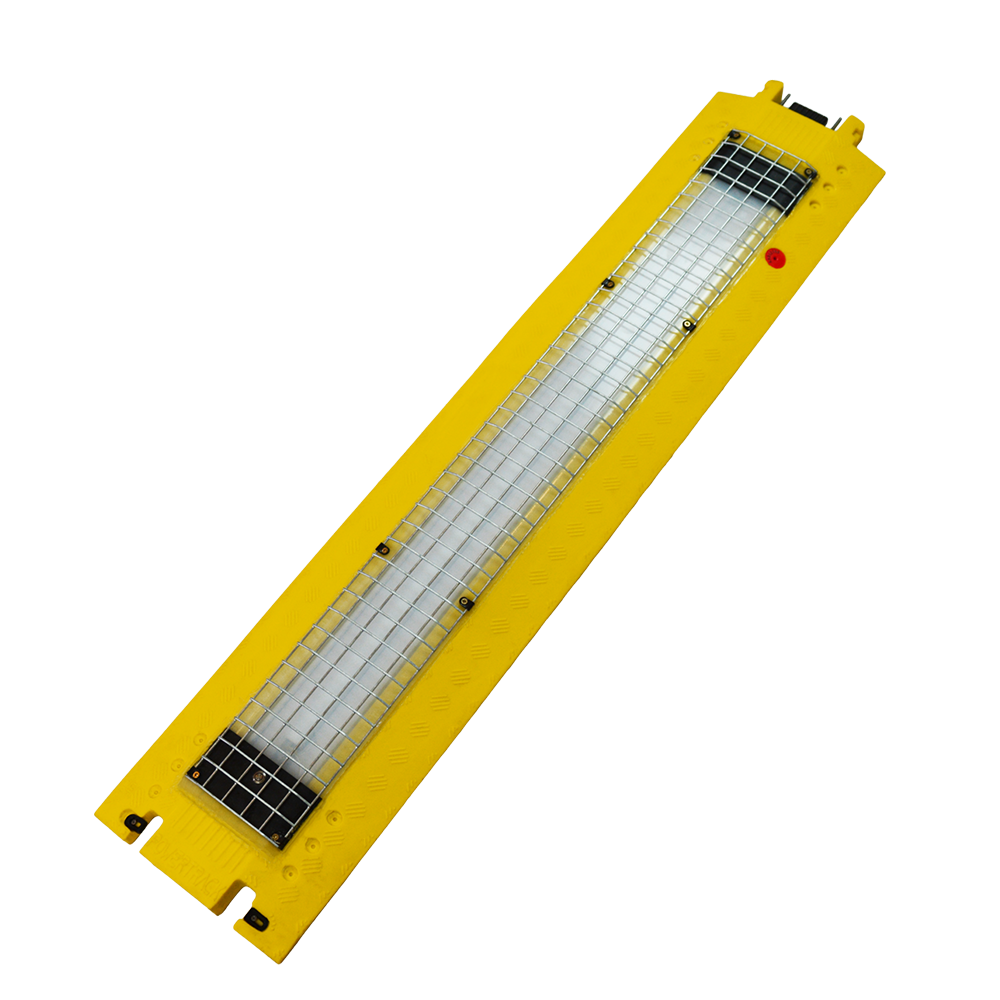

| Emergency Lighting (PTLE00WC) | 1200mm | 258mm | 29mm | 6.2kg | IP65/IP2X | 300kg | Emergency enabled luminare. 30,000 hours LED life span. Emergency back up of 1 hour. Battery test and off switch to prevent battery drain down. |
| Power (PTPP00) | 200mm | 258mm | 29mm | 1.6kg | IP65/IP2X | n/a | Power module providing 16amp female commando outlet. |
| Power Post (PTPP10) | 86mm | 86mm | 900mm | 0.75kg | n/a | n/a | Slides over top of Power module. |

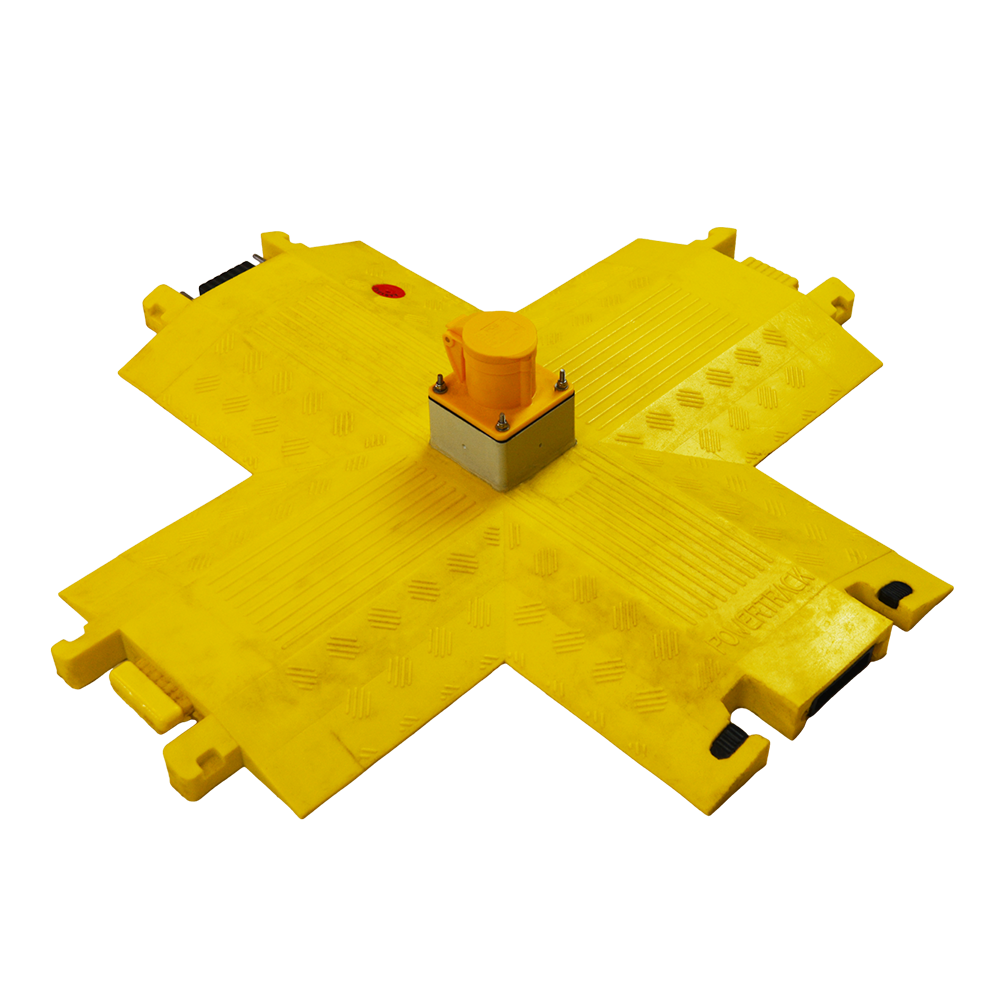

| 4-Way (PTX000) | 600mm | 600mm | 29mm | 6.7kg | IP65/IP2X | 5000kg | Facilitates connections for 4-way direction. |
| Slinky (PTS000) | 1000mm | 258mm | 29mm | 3kg | IP65/IP2X | 100kg | Provides flexibility to overcome change of levels and planning at any angle. |
| Braided Slinky (PTSNV0) | 1100mm | 258mm | 29mm | 4.4kg | IP65/IP2X | 100kg | This version of our slinky is for sharp chnages of direction and is supplied with protective polyurethane braiding along its cabling. |
| Converter – Powertrack to Traditional 110v (PTCM43) | 200mm (not including leads) | 258mm | 29mm | 1.9kg | IP65/IP2X | 100kg | Enables conversion from Powertrack to standard 110v leads. |
| Reconverter – Traditional 110v to Powertrack (PTCF43) | 200mm (not including leads) | 258mm | 29mm | 1.9kg | IP65/IP2X | 100kg | Enables conversion back from standard 110v leads to Powertrack. |

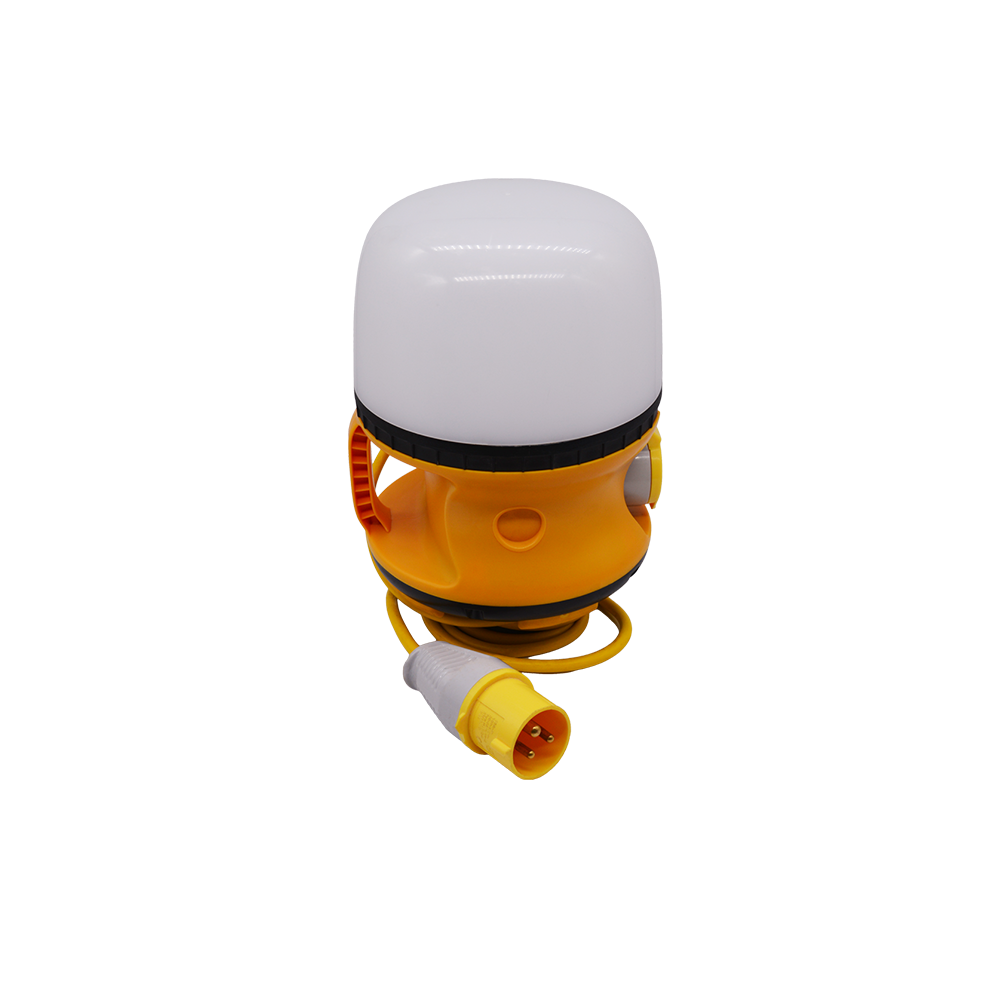

| Lighting Globe (PTGLSP0) – emergency version also available | n/a | 190mm | 252mm | 1.8kg | IP54 | n/a | Fits onto Power Post and connects to Power Outlet to provide 360° light distribution. |

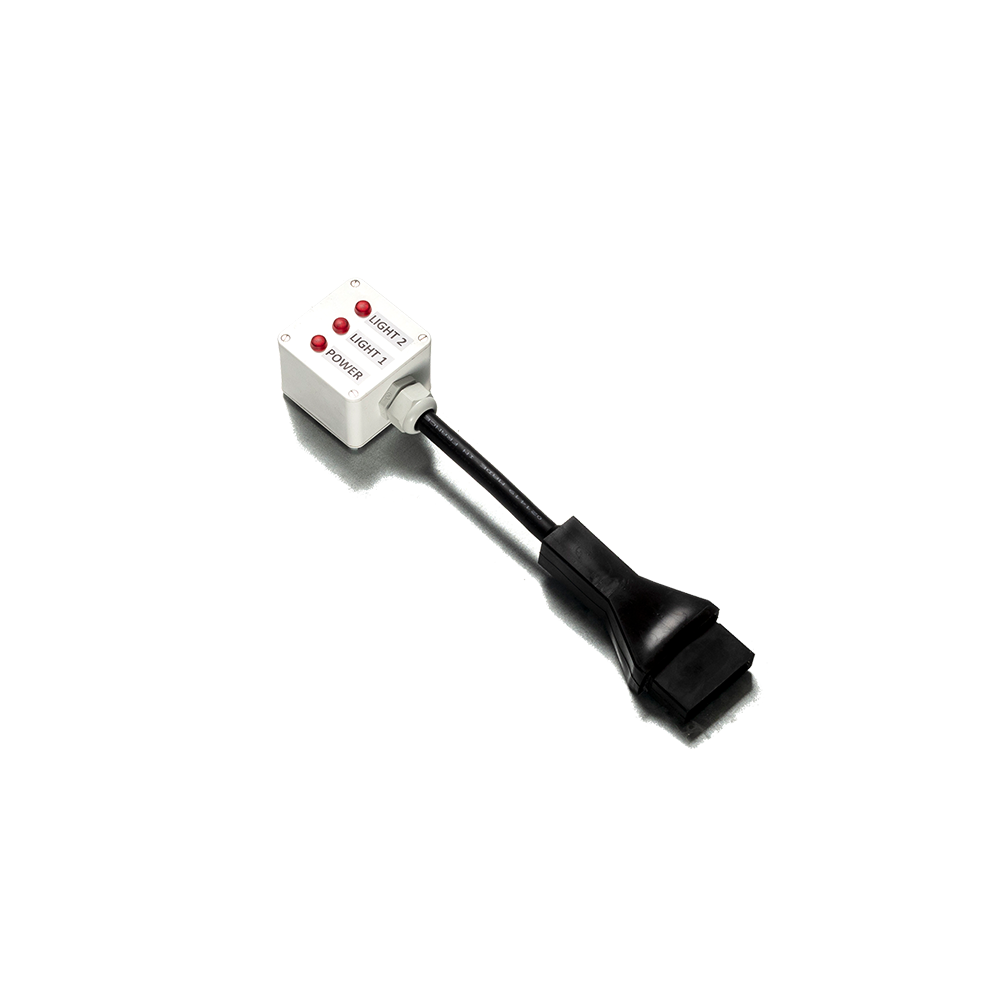

| Test Leads (PTTL02) | 600mm | n/a | n/a | 0.4kg | n/a | n/a | Enables electrical testing of modules. |
| Lighting and Power Test Leads (STNTLP) | 400mm | n/a | n/a | 0.4kg | n/a | n/a | Enables electrical testing of modules. |

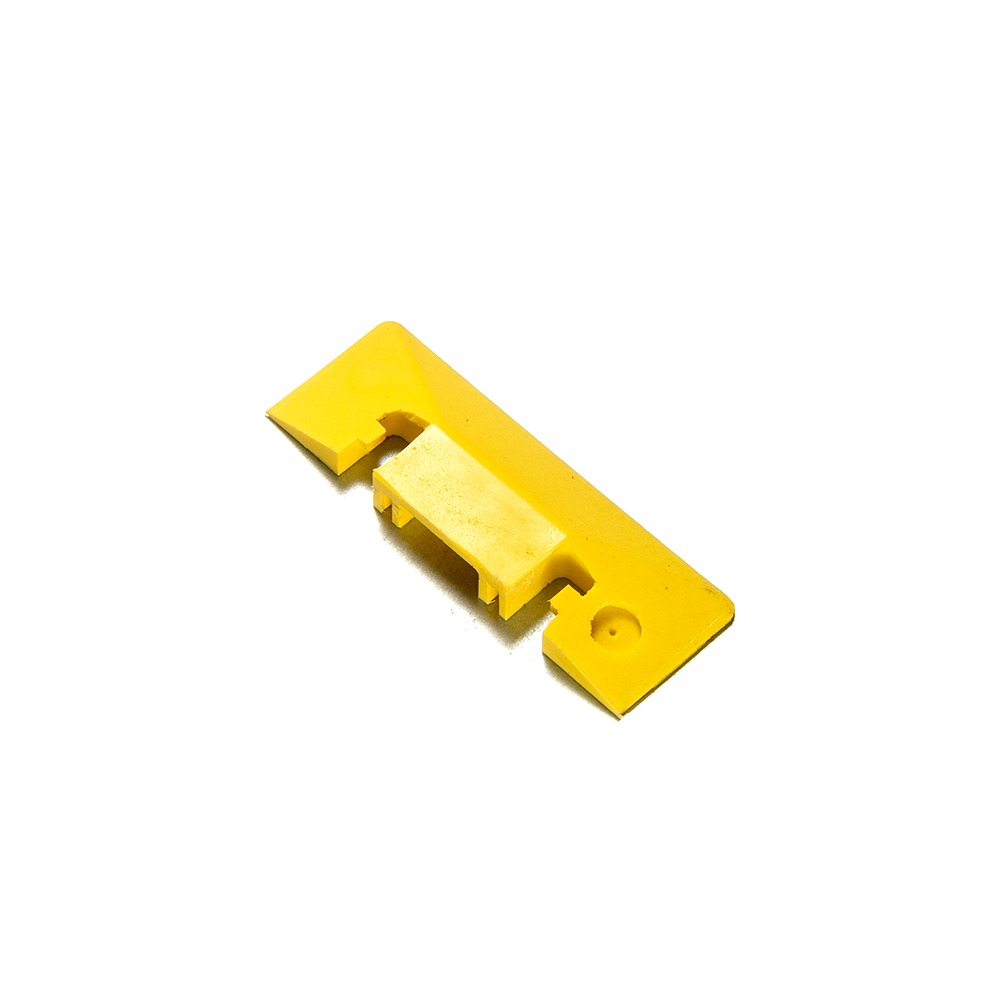

| End Cap (PTEC00) | 150mm | 258mm | 29mm | 0.75kg | IP65/IP2X | 500kg | Protects exposed end of modules where needed. |
| T Piece (PTT000) | 600mm | 450mm | 29mm | 5.5kg | IP65/IP2X | 500kg | Facilitates connection for T-arrangement. |
| Right / Left Turns (PTTP00) | 450mm | 450mm | 29mm | 4kg | IP65/IP2X | 500kg | Facilitates connection for right and left turns. |
